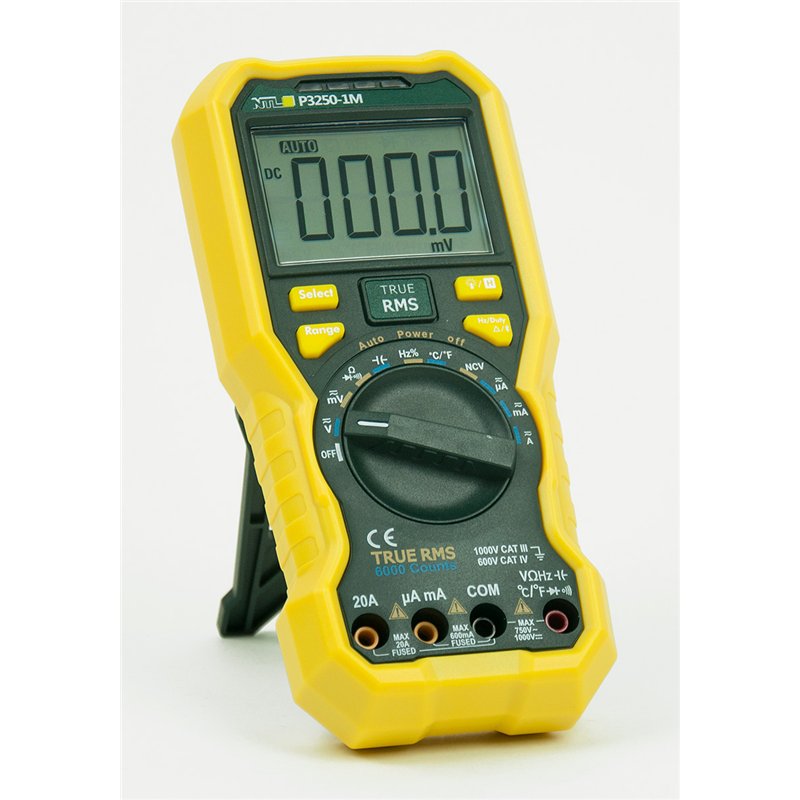

Multiméter, digitális, Bluetooth

Professional multimeter (safety category CAT IV) with True RMS measurement;

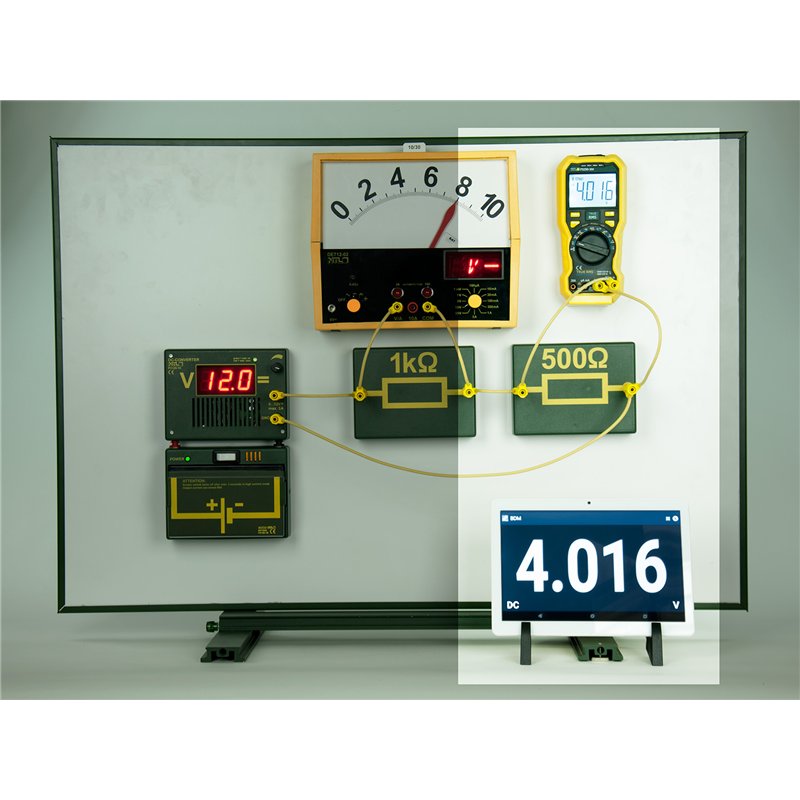

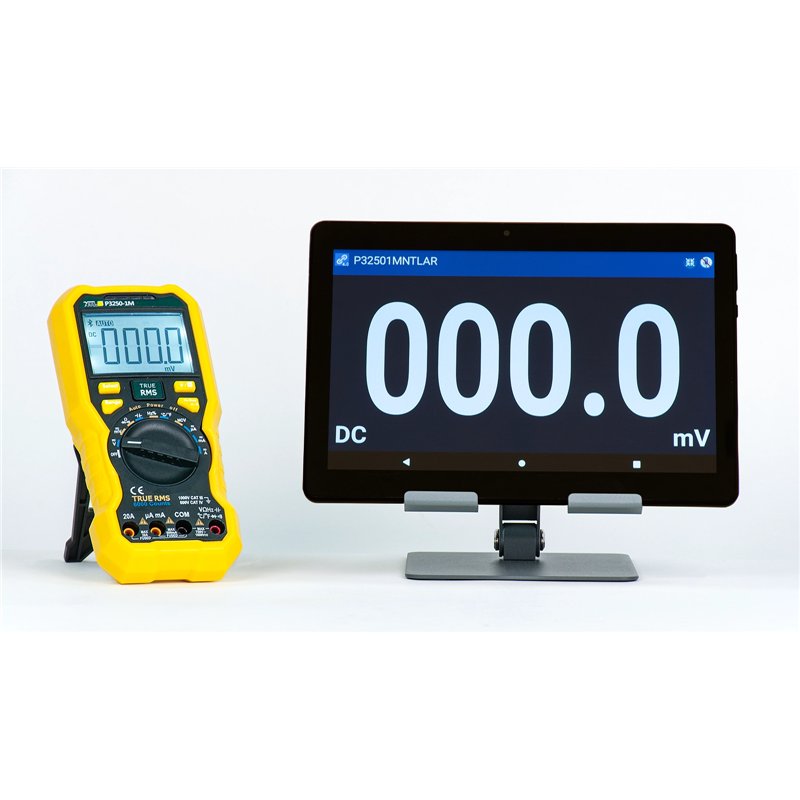

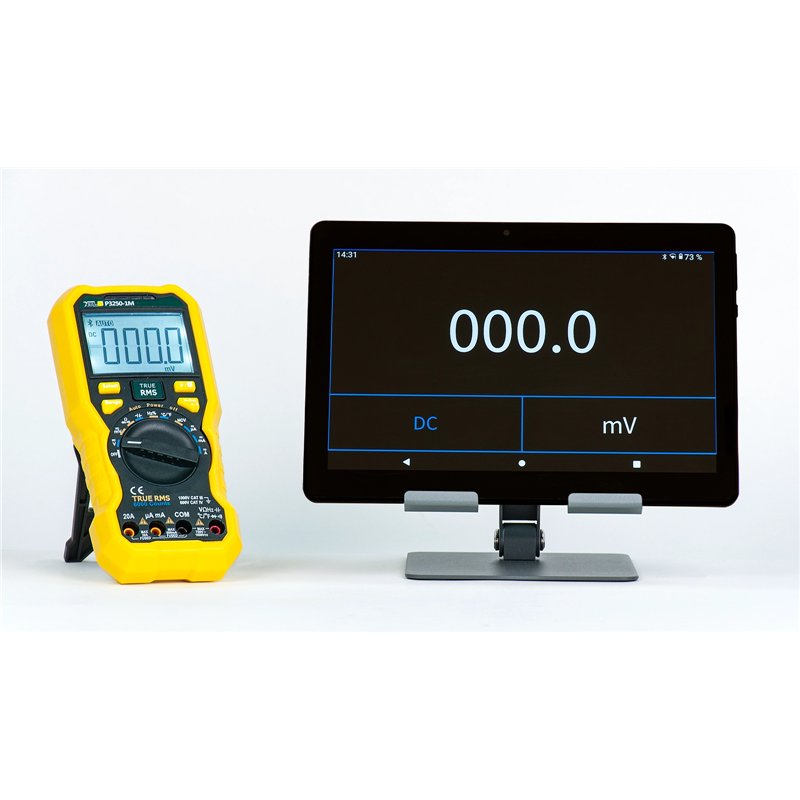

Data transfer via Bluetooth (4.0) enables measurement acquisition on a tablet, mobile phone or PC (with Bluetooth).

The free apps for Android and iOS enable the following ways to display the measurements:

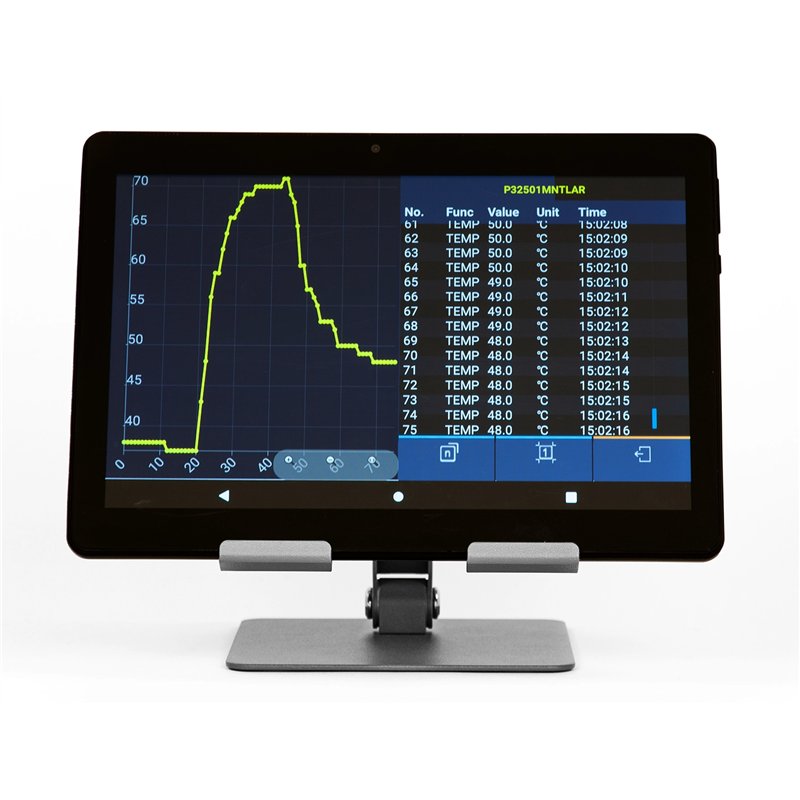

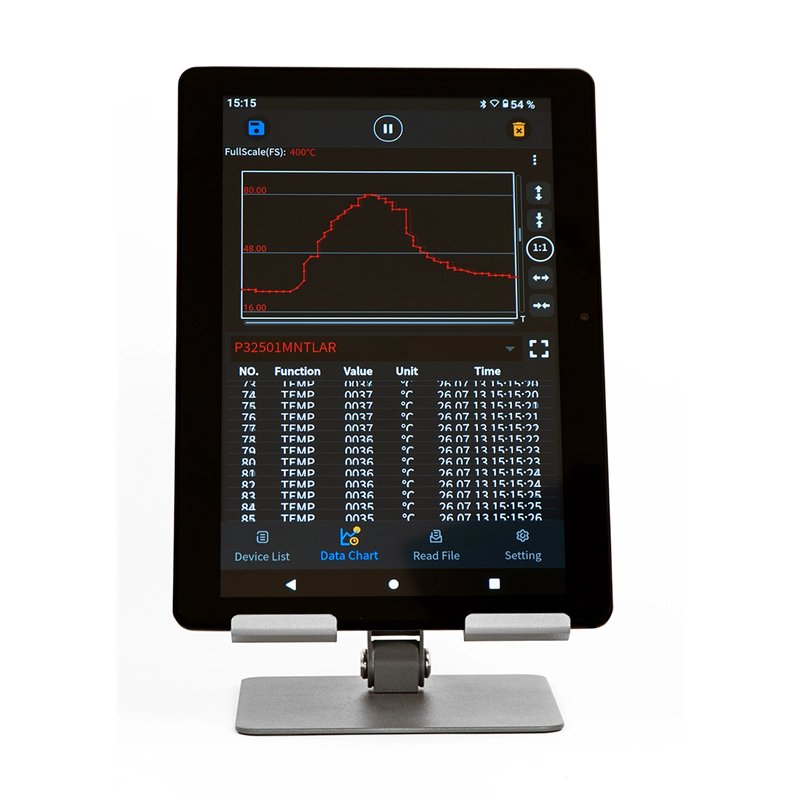

- analogue as a diagram

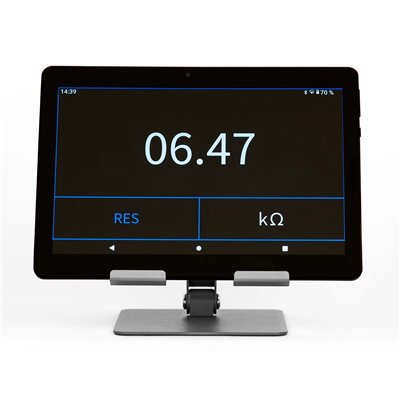

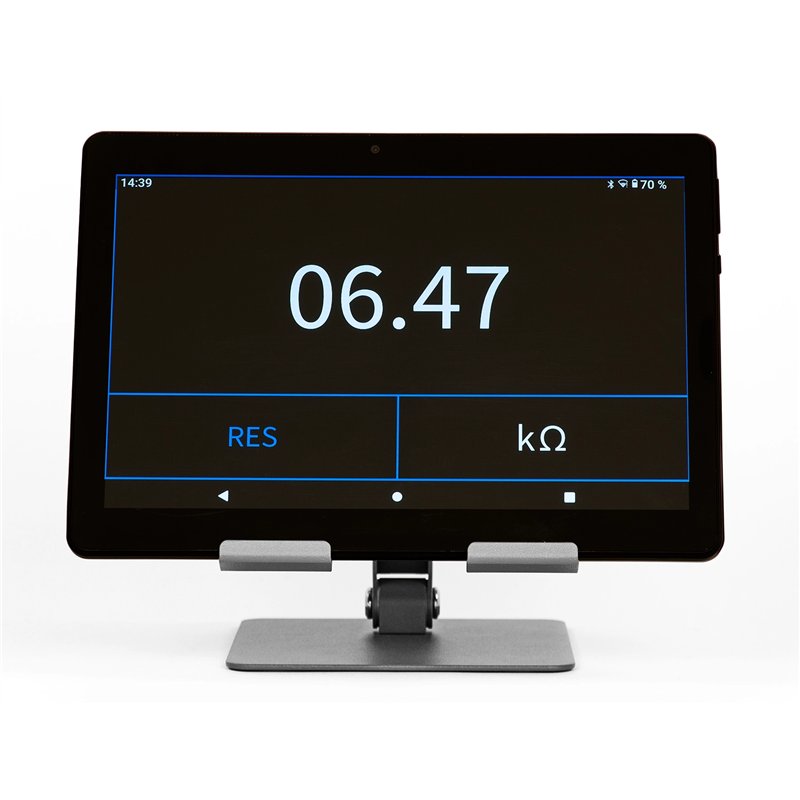

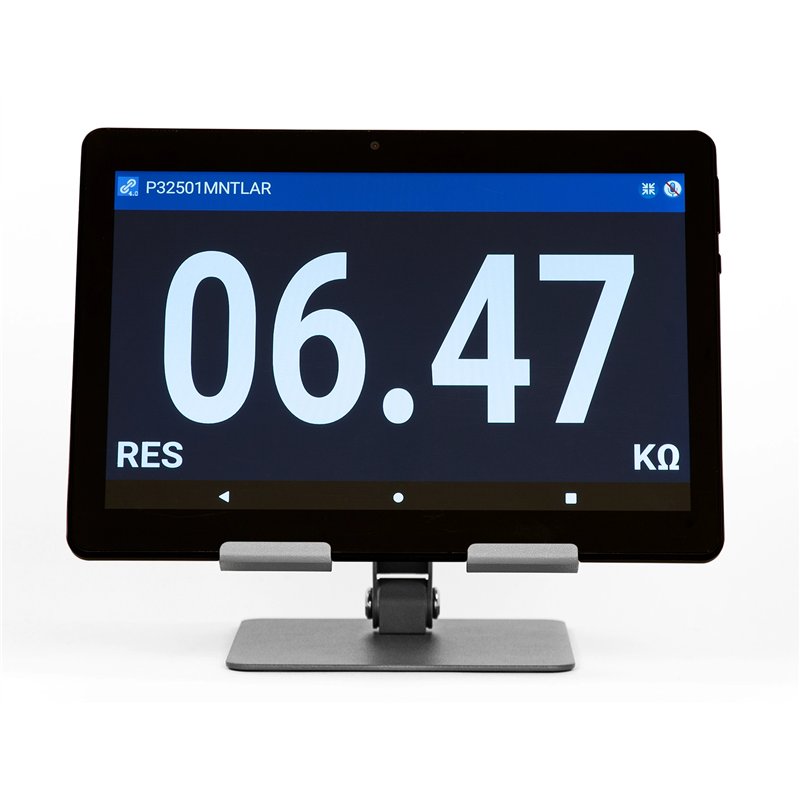

- digital (on a 10” tablet the measured values are displayed in full screen mode with a digit height of up to 65 mm)

to measure		Measuring range		max. Resolution
Voltage DC (V):		60.00 mV - 1000 V		0.01 mV
Voltage AC (V):		60.00 mV - 750 V		0.01 mV
Current DC (A):		600.0 μA – 20.00 A		0.1 μA
Current AC (A):		600.0 μA – 20.00 A		0.1 μA
Resistance (Ω):		600.0 Ω – 60.00 MΩ;		0.1 Ω;
Capacity (F):		60.00 nF – 60.00 mF		0.01 nF
Frequency (Hz):		9.999 Hz – 9.999 MHz		0.001 Hz
Temperature (°C/°F):		-50 - +400°C		1°C
		-58 - +752°F		1oF

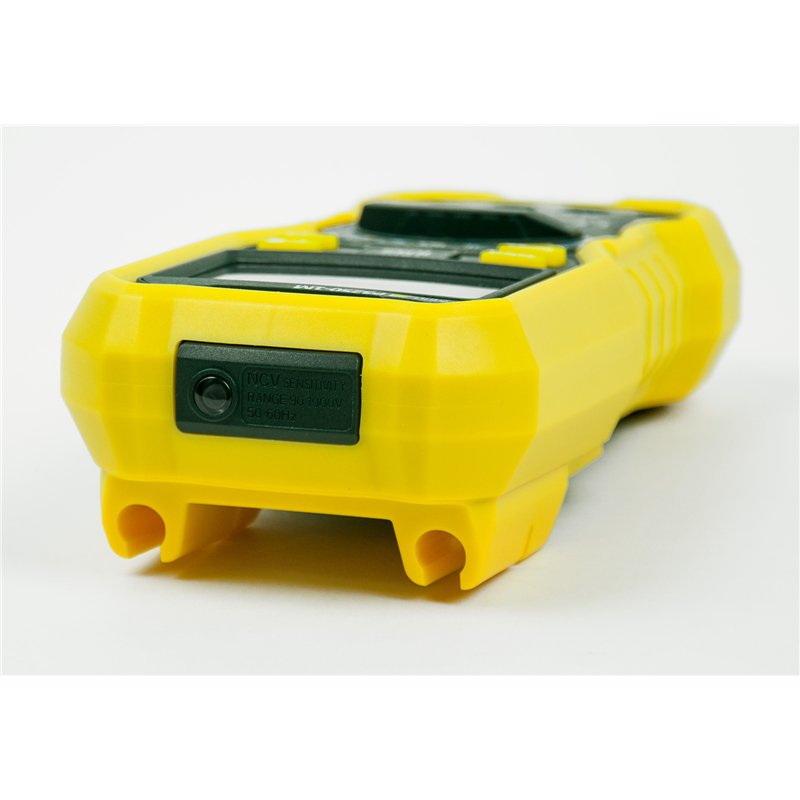

Continuity test, Diode test, Non-contact voltage detection (NCV)

Other functions:
Automatic range selection, overload protection, “Data hold” function, relative value, LCD back light, integrated flash light, battery display, automatic shutdown

Way of measuring: True RMS
Safety category: CAT IV (up to 600 V and CAT III (up to 1000 V)
Internal resistance: ≥ 10 MΩ
Size of LCD display: 58.5 x 41 mm
Digit height: 24.5 mm

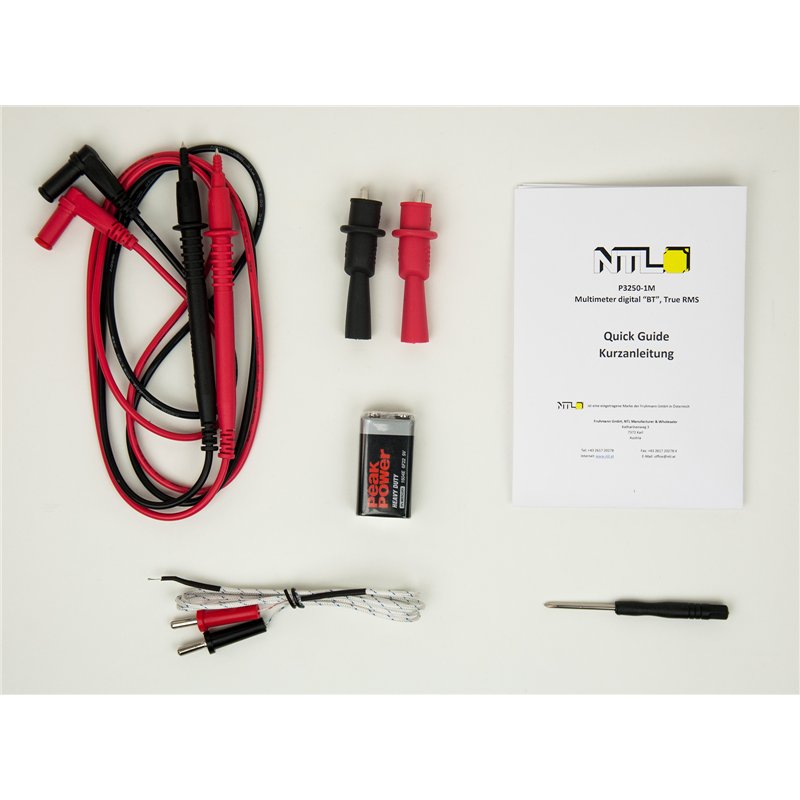

Included in the scope of delivery:

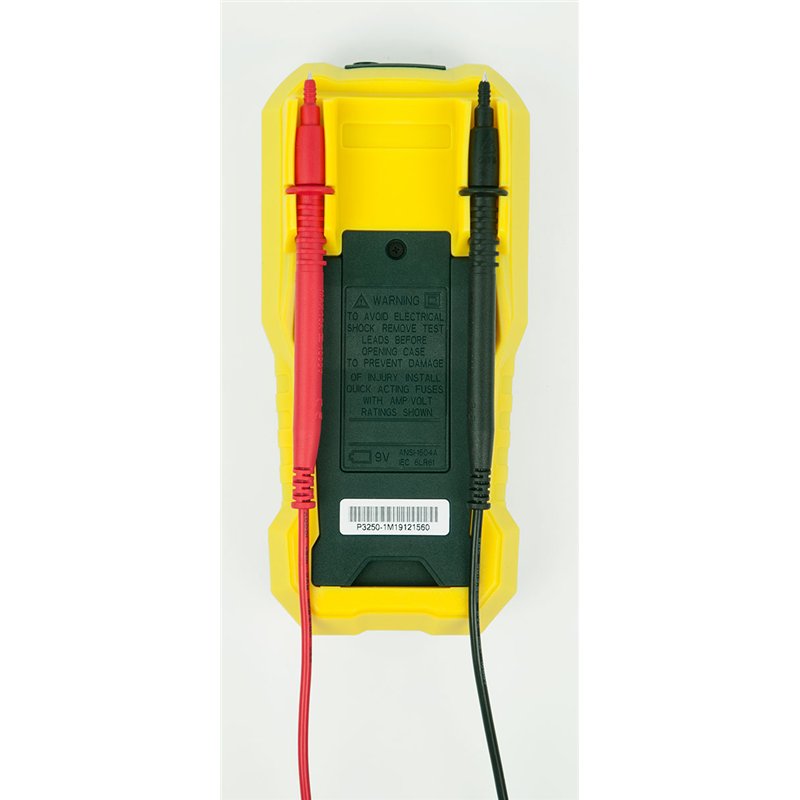

2 measurement cables, 2 isolated alligator clips, temperature sensor, holster, screwdriver, technical instructions

Power supply: 9V Battery (6F22)
Fuse protection: 1 A (1000 V) and 15 A (1000 V)
Dimensions: 190 x 90 x 56 mm
Weight: approx. 320 g
